Waveguide Twists
Precision-engineered waveguide twists from WR-03 to WR-28. 90-degree polarization rotation with low insertion loss. Gold-plated OFHC copper. Made in the USA.
Select a Waveguide Twist
Polarization Rotation for RF Systems

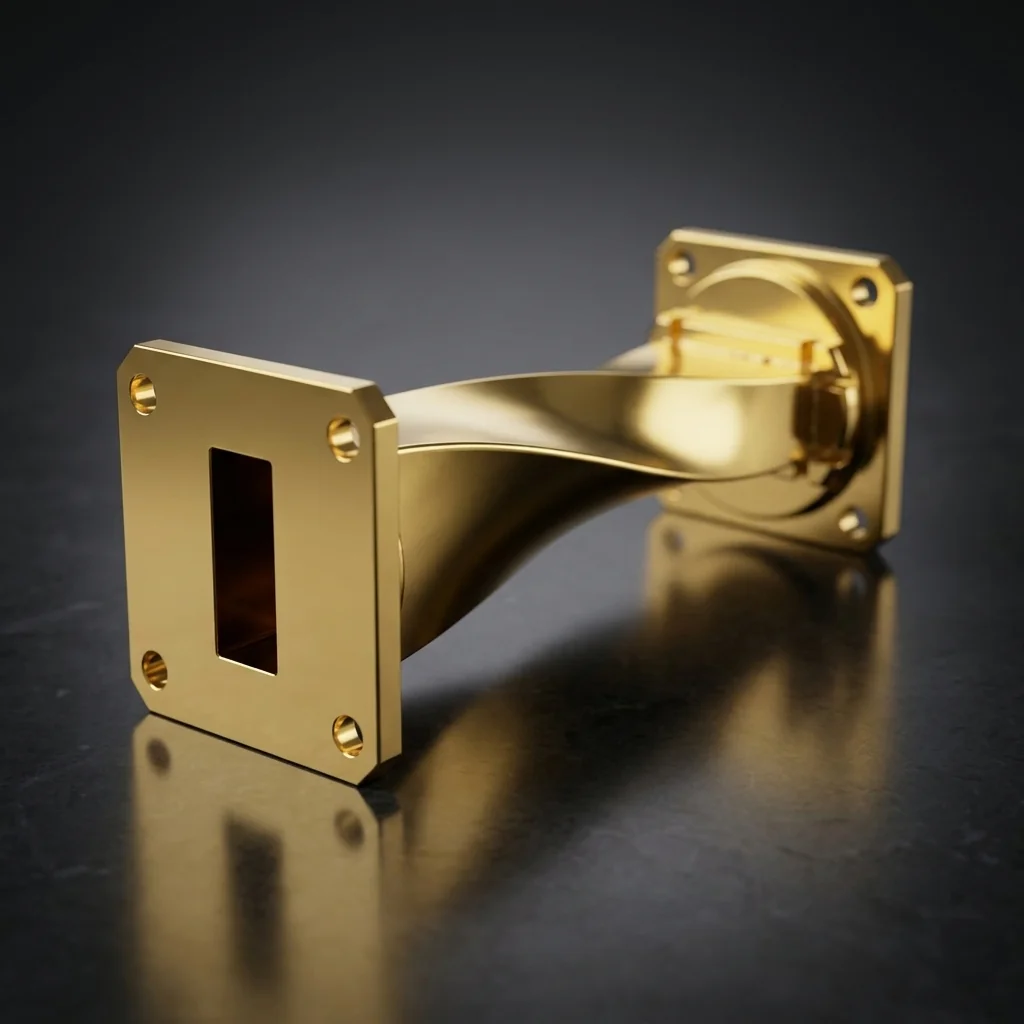

RF Essentials waveguide twists are precision-engineered components that rotate the polarization orientation of millimeter-wave signals. By gradually twisting the rectangular waveguide cross-section, these components enable seamless transitions between horizontal and vertical polarization within a waveguide assembly.
Available in standard 90-degree twist configurations across WR sizes from WR-28 through WR-03, each twist is manufactured from OFHC copper with gold plating. The gradual twist profile ensures minimal signal disruption and consistent VSWR across the full operating bandwidth.
Key Features
Gradual Twist Profile
Progressive twist geometry minimizes signal reflections and maintains TE10 mode integrity through the rotation.
Low Insertion Loss
Precision-machined interior walls ensure consistent waveguide dimensions throughout the twist length.
Compact Design
Optimized twist length balances compact form factor with performance requirements.
Materials & Finish
- 01Waveguide Body
Oxygen-free high conductivity (OFHC) copper for maximum signal performance and minimal loss. - 02Flanges
Precision-machined brass flanges with standard MIL-DTL-3922 patterns for universal compatibility. - 03Surface Finish
Gold plating for superior corrosion resistance, environmental durability, and long-term signal reliability. - 04Made in America
Every component is manufactured domestically at our St. Petersburg, Florida facility for strict quality control.
Applications
Polarization Diversity
Enables switching between horizontal and vertical polarization in dual-polarized antenna feed systems.
Satellite Communications
Required for aligning waveguide polarization between feed horns and orthomode transducers in earth stations.
Radar Arrays
Facilitates polarization alignment in phased array and multi-function radar waveguide networks.
System Integration
Resolves polarization misalignment when connecting waveguide components oriented in different planes.
More RF Components
Frequently Asked Questions
What is a waveguide twist?+
A waveguide twist is a passive component that rotates the cross-sectional orientation of a rectangular waveguide. A 90-degree twist rotates the polarization of the transmitted signal by 90 degrees, converting between horizontal and vertical polarization.
What twist angles are available?+
RF Essentials offers standard 90-degree waveguide twists. Custom twist angles (such as 45 degrees) can be manufactured upon request for specialized polarization requirements.
Do waveguide twists affect signal quality?+
RF Essentials waveguide twists are engineered with a gradual twist profile that maintains excellent VSWR and minimal insertion loss. The gradual transition prevents abrupt changes in the waveguide geometry that could degrade signal quality.
