Waveguide
Terminations
Precision-engineered waveguide termination loads in low power, medium power, high power, and sliding matched configurations. Find the right termination for your application across multiple frequency bands.
Select a Termination Type

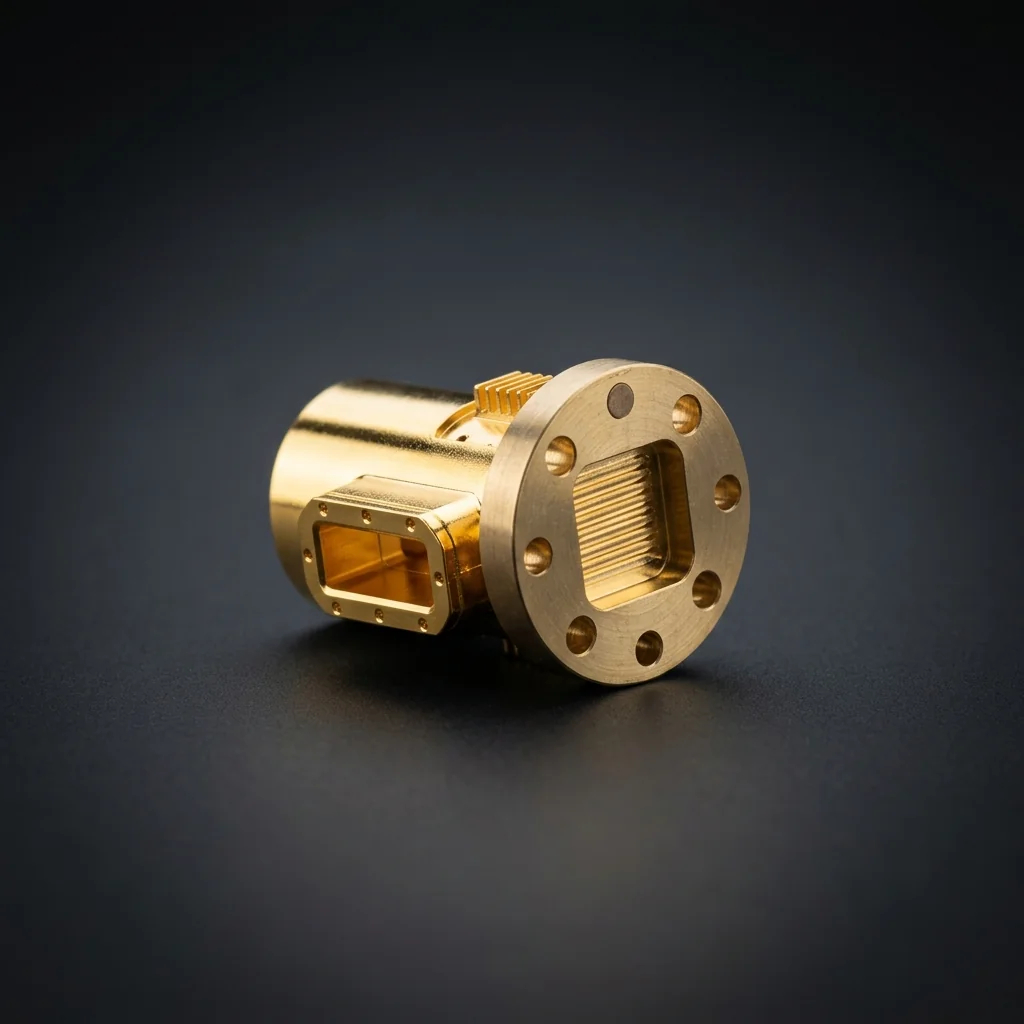

Low Power Terminations
Compact matched loads for test and measurement. Ideal for network analyzer calibration and bench-top signal termination at milliwatt power levels.
View Products →

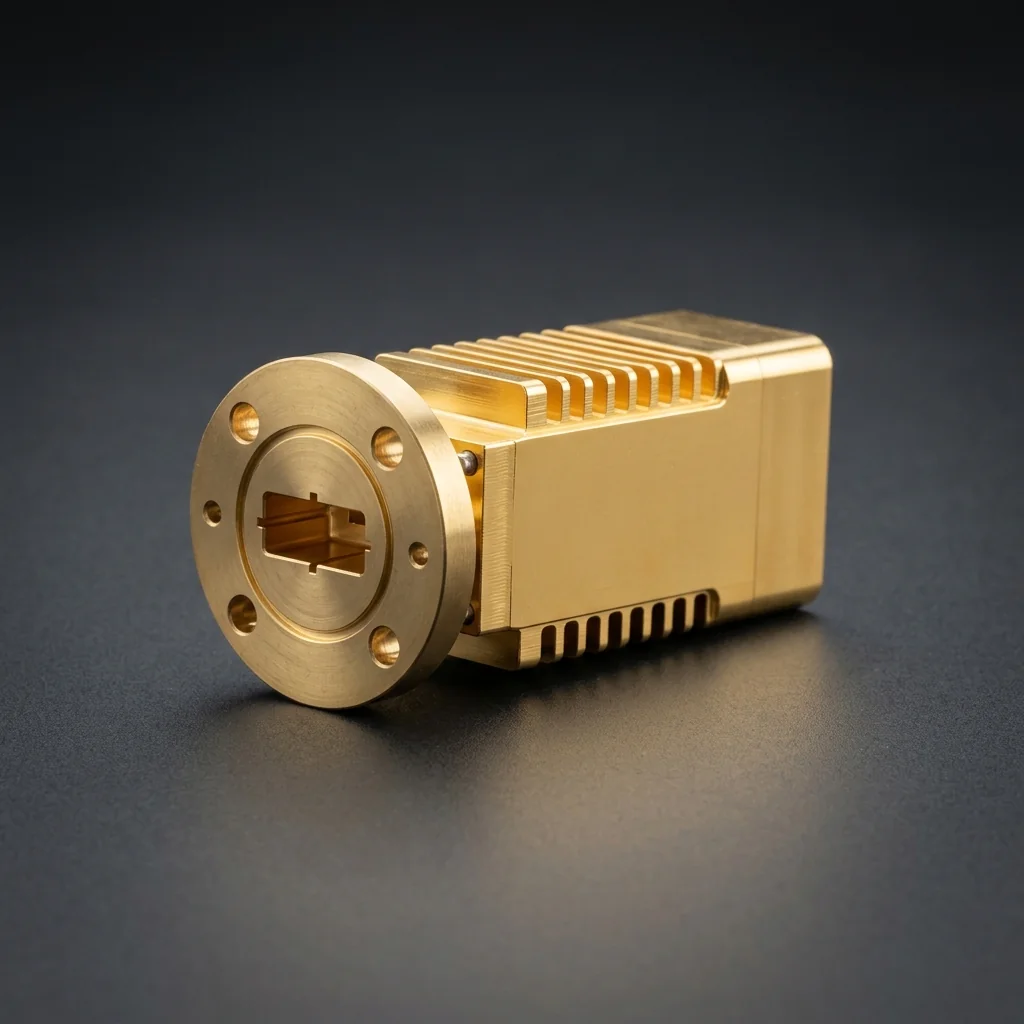

Medium Power Terminations
Broadband waveguide loads with moderate power handling. Suitable for system integration, production testing, and field applications.
View Products →

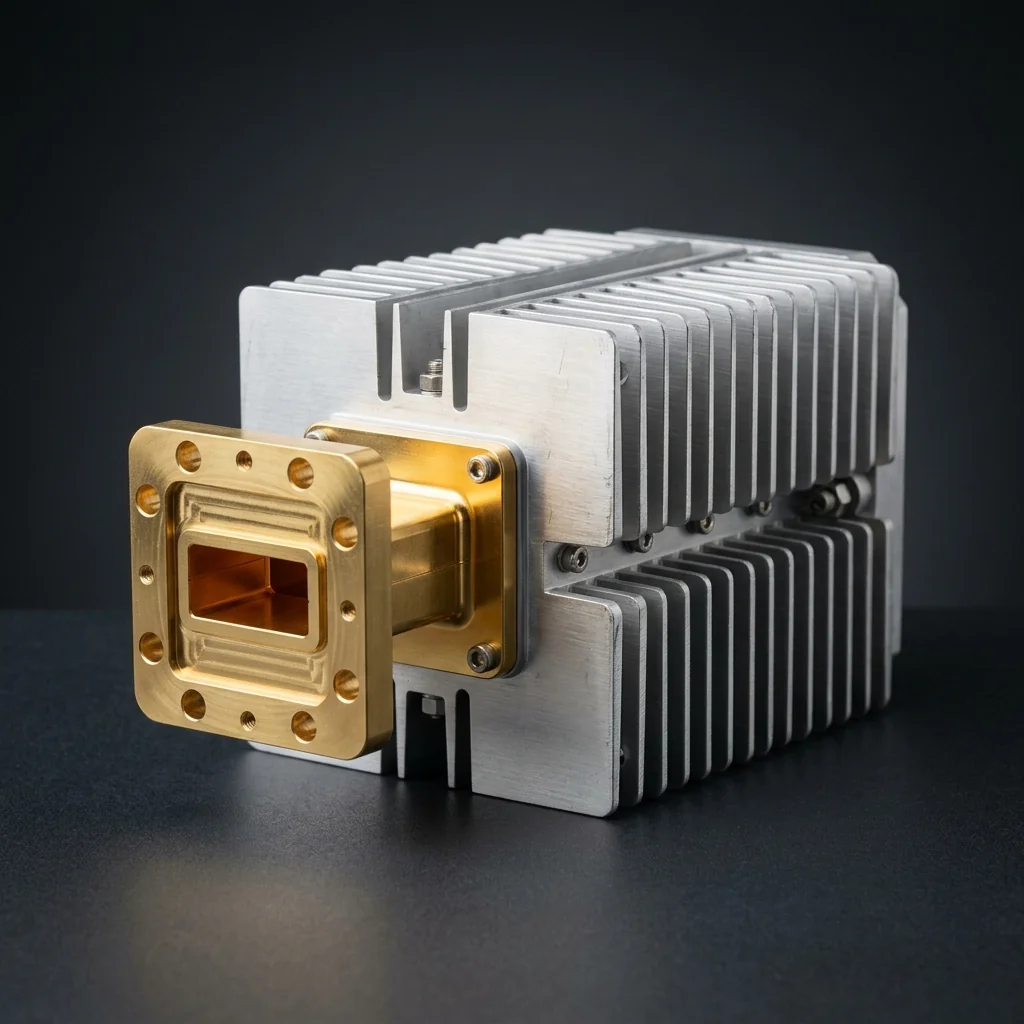

High Power Terminations
Heavy-duty loads with heat-dissipating construction. Designed for transmitter testing, system burn-in, and high-power integration.
View Products →

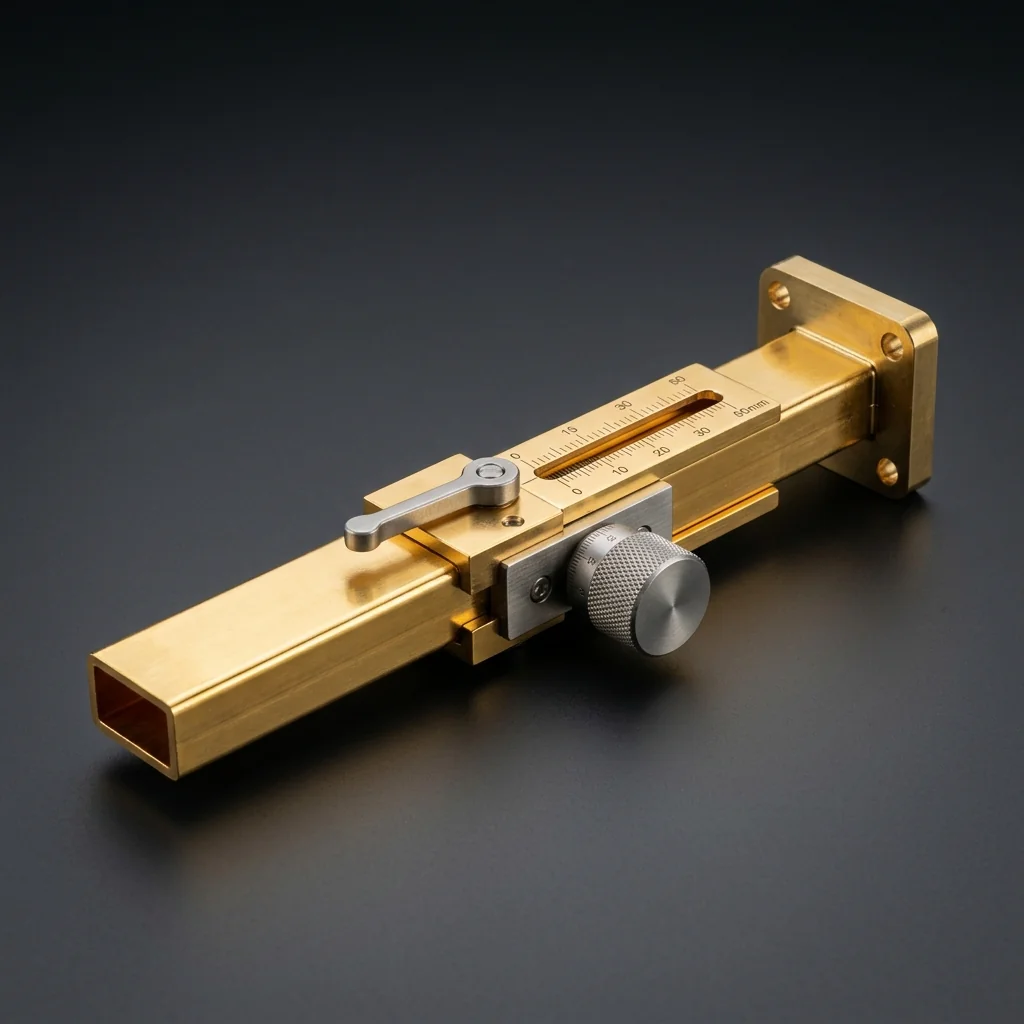

Sliding Matched Terminations
Adjustable terminations with sliding mechanism for precision impedance matching. Used in calibration kits and tuning applications.
View Products →Matched Loads for Precise RF Performance
RF Essentials waveguide terminations are precision-engineered matched loads designed to absorb RF energy across millimeter-wave frequencies. By providing a well-matched impedance, these terminations minimize signal reflections, protecting sensitive components and ensuring accurate test measurements.
Available in both low power and high power configurations, our terminations cover frequencies from 18 GHz through 500 GHz. Each unit is constructed from OFHC copper with gold plating for optimal conductivity and corrosion resistance.
Key Features
Low VSWR
Engineered for excellent return loss and matched impedance across the full operating bandwidth.
Broadband Performance
Full-band coverage within each WR designation for consistent performance across the operating range.
Power Handling
Available in low power (standard) and high power configurations for demanding transmitter test applications.
Materials & Finish
-
01
Absorptive Element
Precision-cut lossy material engineered to absorb RF energy with minimal reflection across the full operating bandwidth. -
02
Waveguide Body
OFHC copper housing provides excellent thermal conductivity and electrical performance. -
03
Surface Finish
Gold plating for superior corrosion resistance, environmental durability, and long-term reliability. -
04
Flanges
Precision-machined brass flanges with standard MIL-DTL-3922 patterns for universal compatibility.
Applications
Test & Measurement
Provides a matched load for calibrating network analyzers, power meters, and other precision RF test equipment.
Transmitter Testing
High power terminations safely absorb transmitter output during testing, protecting downstream components from damage.
System Integration
Used as port terminations in waveguide systems to eliminate unwanted reflections from unused ports or signal paths.
Radar & Satellite
Critical for radar calibration and satellite ground station testing where precise impedance matching is required.
More RF Components
Frequently Asked Questions
What is a waveguide termination?+
A waveguide termination (also called a waveguide load) is a passive component that absorbs RF energy at the end of a waveguide transmission line. It prevents signal reflections by providing a matched impedance, which is critical for accurate measurements and system protection.
What is the difference between low power and high power terminations?+
Low power terminations are compact, lightweight units designed for test and measurement setups, typically handling milliwatt-level signals. High power terminations incorporate heat-dissipating features such as larger bodies and cooling fins, and are designed for transmitter testing and high-power system applications.
What frequency range do RF Essentials terminations cover?+
RF Essentials manufactures waveguide terminations covering frequencies from 18 GHz (Ka-Band) through 500 GHz (sub-THz), available in standard WR sizes from WR-28 through WR-03.
Are RF Essentials terminations made in the USA?+
Yes. All RF Essentials terminations are manufactured in the United States at our facility in St. Petersburg, Florida. Domestic production ensures strict quality control and fast lead times.
