Integrated
Assemblies
Custom sub-assemblies, sub-systems, and fully integrated signal chain solutions. From waveguide networks to complete transmitter, receiver, and transceiver modules, tested and delivered as turnkey packages.
Browse by Category

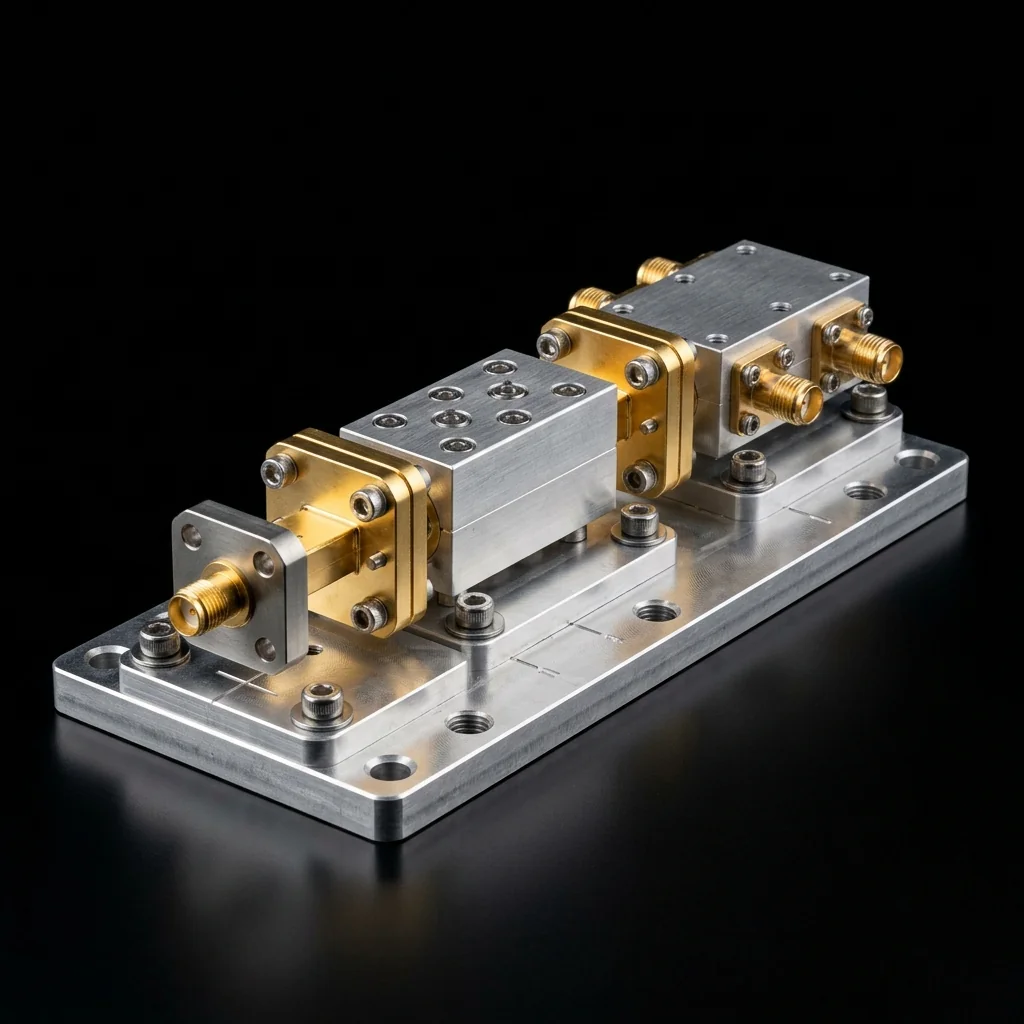

RF Sub-Assemblies
Component-level builds combining two or more passive or active RF components on a common baseplate. Waveguide networks, filter chains, coupler assemblies, and transition stacks built to your mechanical and electrical specifications.
Request Info

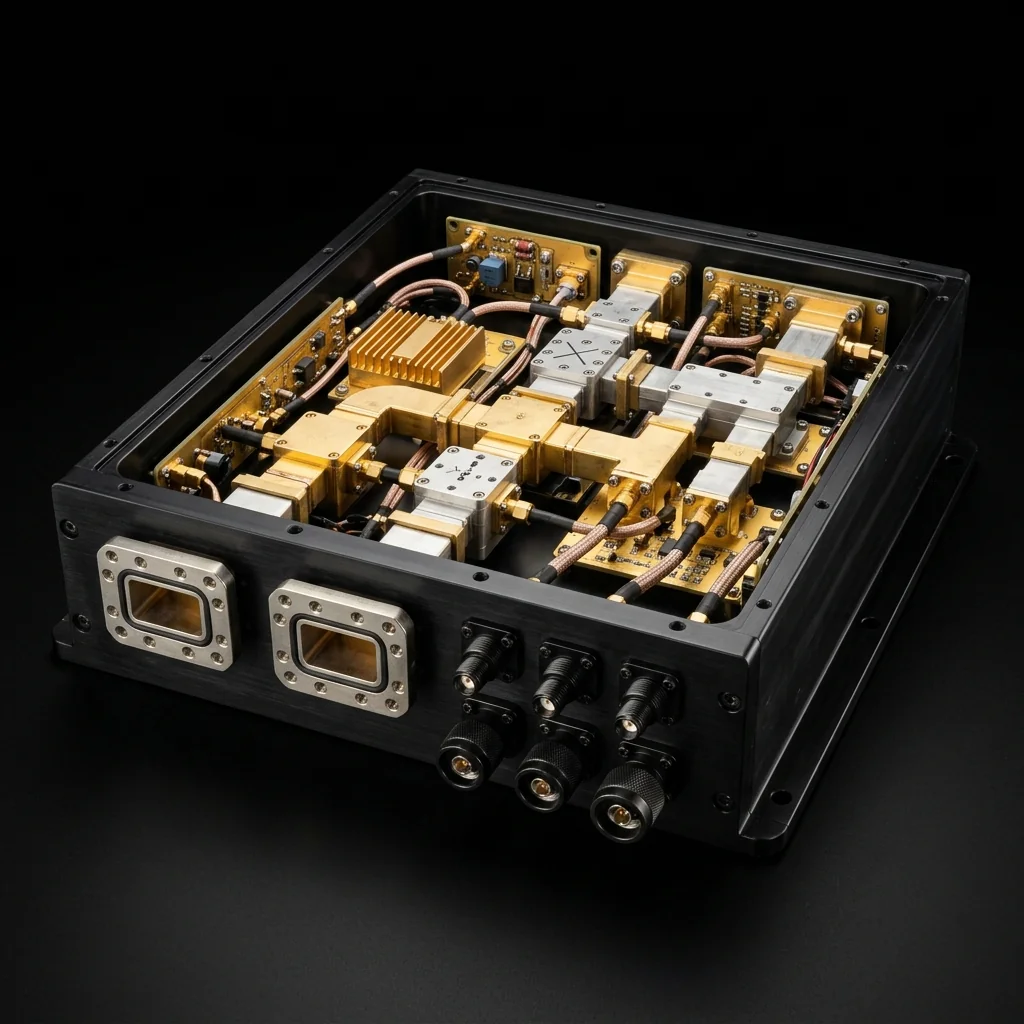

RF Sub-Systems
Multi-component functional blocks housed in ruggedized enclosures. Amplifiers, mixers, filters, and oscillators integrated into a single tested unit with power conditioning and monitoring interfaces.
Request Info

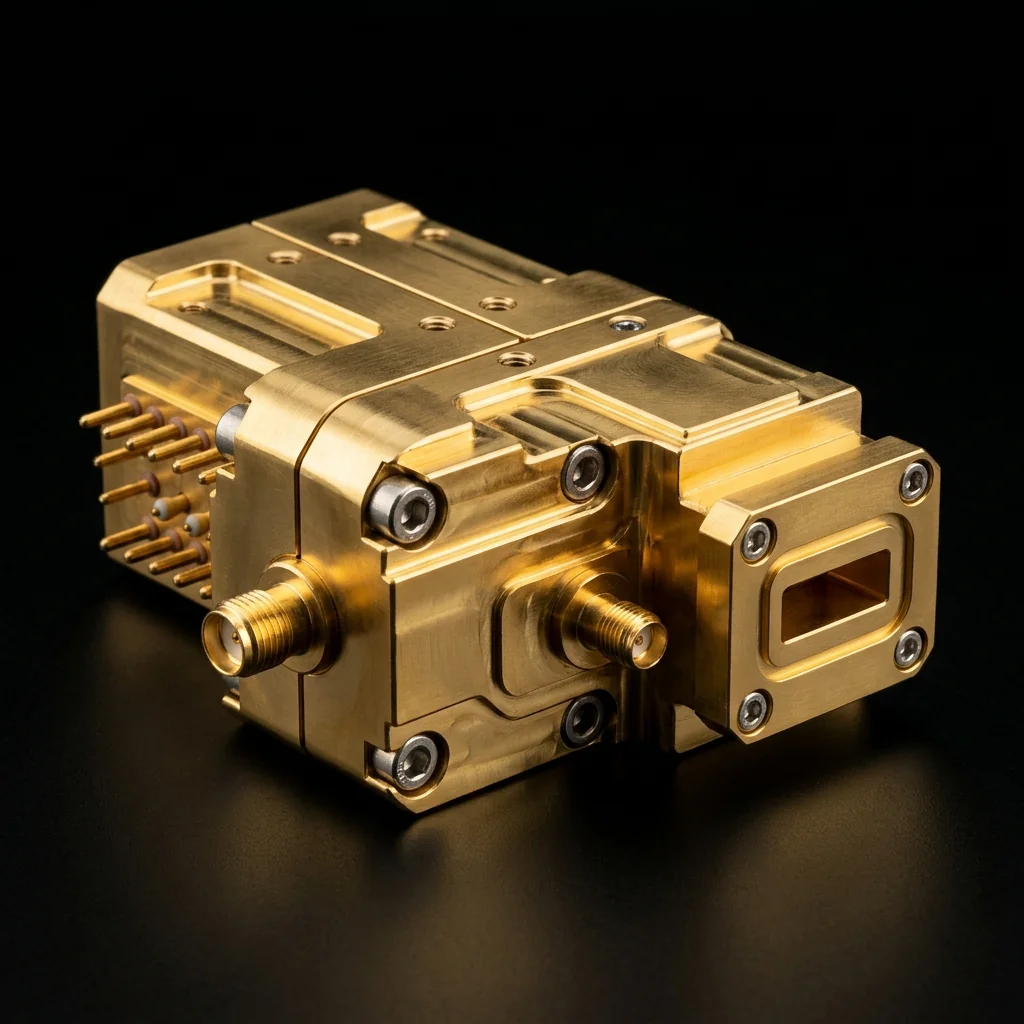

Upconverter / Transmitters
Complete transmit signal chains: IF input to mmWave RF output. Integrated upconversion, amplification, filtering, and power conditioning in a single compact module for satellite uplinks and point-to-point links.
Request Info

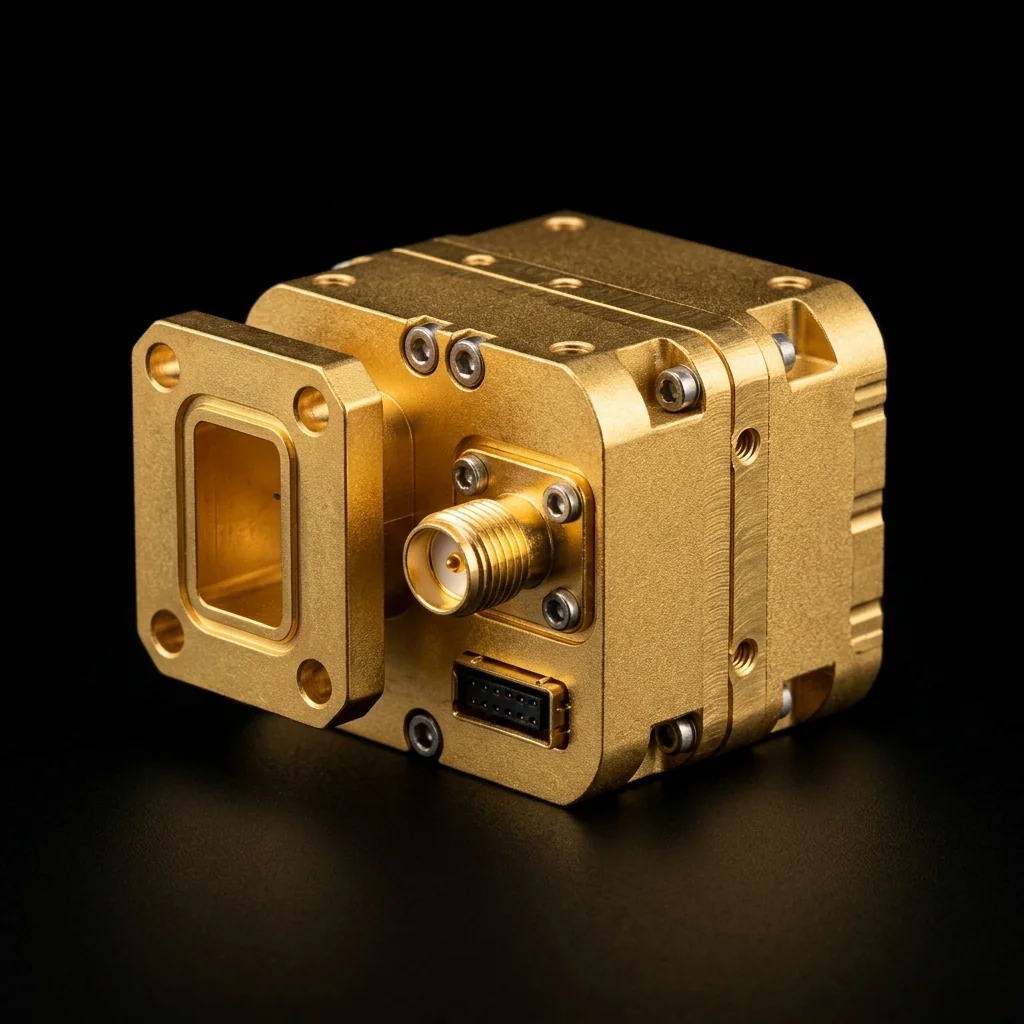

Downconverter / Receivers
Complete receive signal chains: mmWave RF input to IF output. Integrated low-noise amplification, downconversion, and filtering with optimized noise figure for maximum receiver sensitivity across the operating band.
Request Info

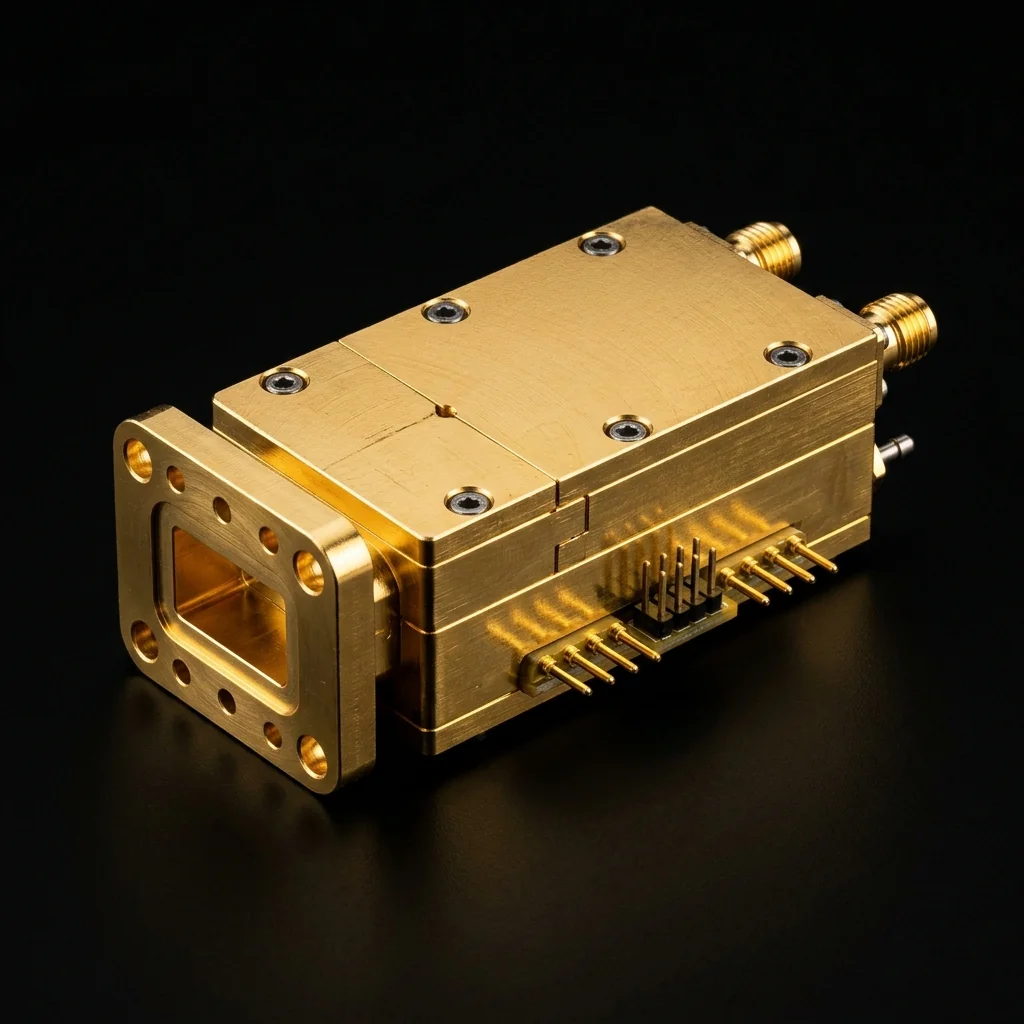

Transceivers
Combined transmit and receive modules sharing a common antenna port. Integrated diplexers or circulators for full-duplex operation. Complete TX/RX signal chains in a single enclosed package for communications and radar systems.
Request Info

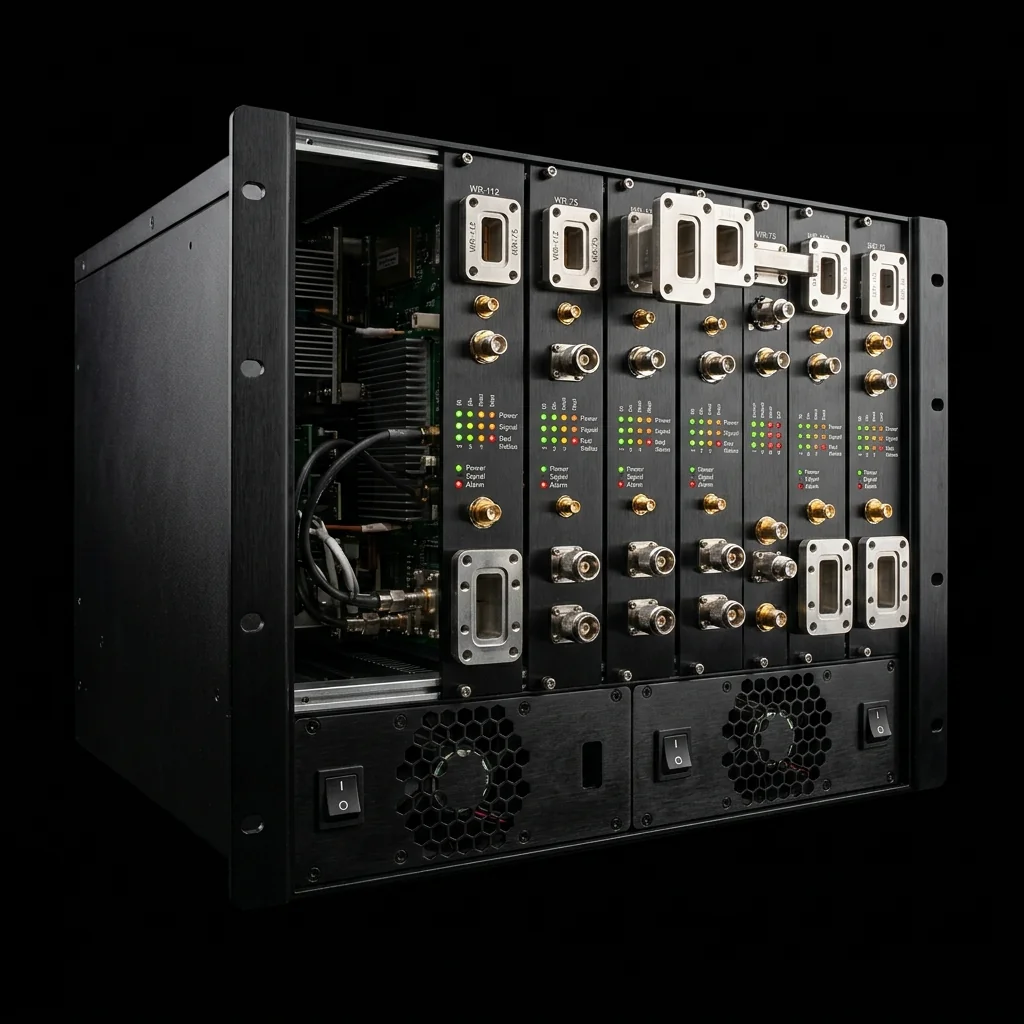

Custom Integrated Systems
Fully integrated rack-mountable or standalone RF systems. Multi-channel converters, amplifier chains, power distribution, control electronics, and monitoring, all in a tested, deployment-ready package.
Request InfoIntegration Capabilities
Custom enclosure design, waveguide routing, thermal management, and interconnect planning. From 3D CAD to final machined housings, all done in-house.
Link budget analysis, component selection, gain/noise cascade optimization, and full-wave simulation of critical transitions and interfaces throughout the signal chain.
End-to-end performance verification including gain, noise figure, P1dB, spurious, and EVM measurements. Every assembly ships with a comprehensive test report.
Temperature cycling, vibration, shock, and humidity testing per MIL-STD specifications. Assemblies are qualified for the operational environment of your platform.
Integrated DC-DC conversion, bias sequencing, over-current protection, and serial/digital control interfaces. Monitoring outputs for temperature, current, and fault status.
From prototype through production quantities. Documented build procedures, component traceability, and repeatable manufacturing processes for consistent unit-to-unit performance.
Where Our Assemblies Perform
RF Essentials integrated assemblies are deployed in programs where performance, reliability, and schedule are critical. Our engineering team works directly with your system architects from requirements through delivery, ensuring the assembly integrates seamlessly into your platform.
- Satellite Ground Terminals
- Airborne SIGINT
- Radar Front-Ends
- Electronic Warfare
- 5G / 6G Infrastructure
- Point-to-Point Links
- Test & Measurement
- Space Payloads
