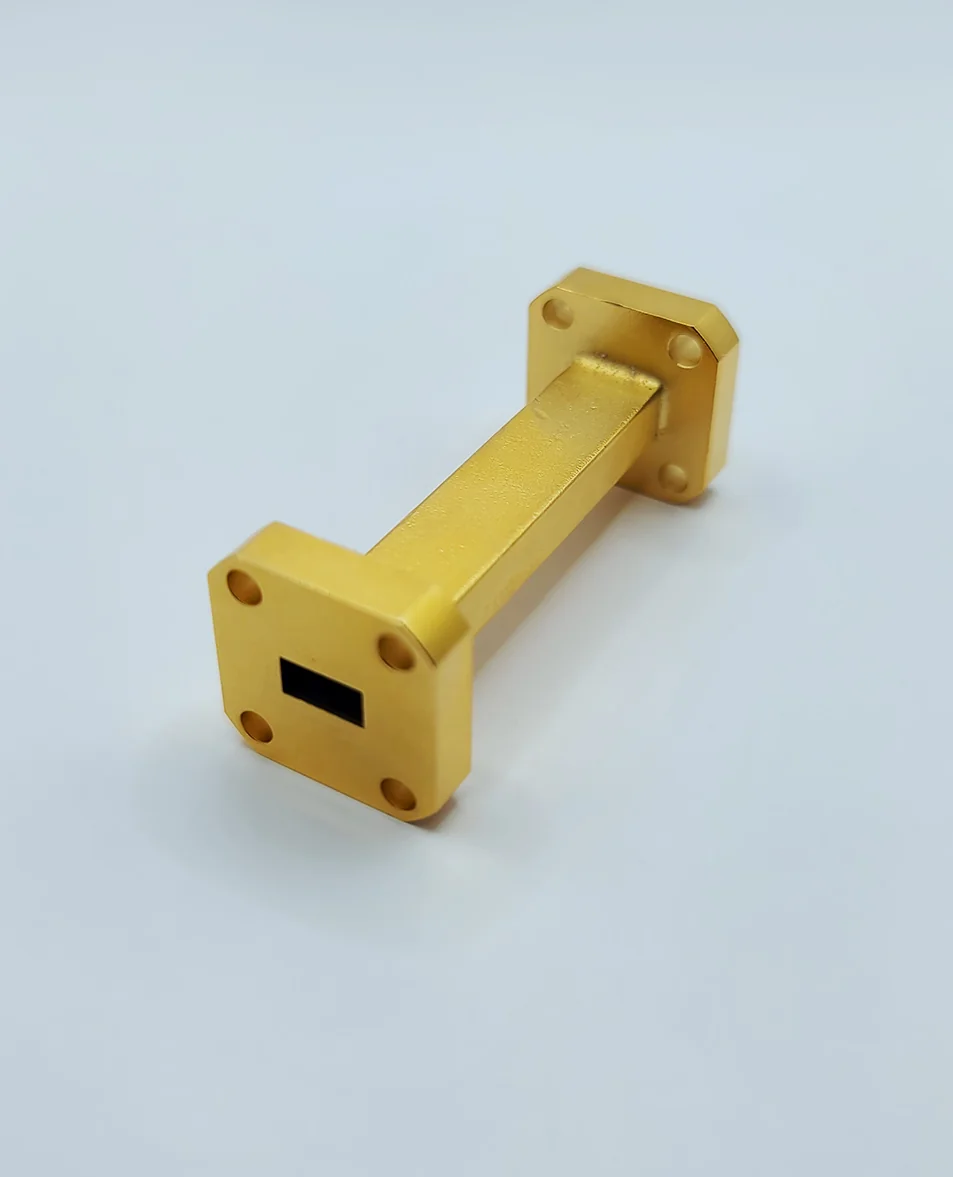

WR-28 Straight Waveguide
The WR-28 Straight Waveguide is a precision-engineered component designed for millimeter-wave systems operating within the 26.5 GHz to 40 GHz frequency range, commonly associated with the Ka-band. Constructed with high-quality materials and finished with gold plating, this waveguide ensures exceptional signal integrity, minimal insertion loss, and robust resistance to corrosion.
The WR-28 straight waveguide is a precision-machined rectangular waveguide that operates in the Ka-band frequency range of 26.5 GHz to 40 GHz. Constructed from oxygen-free high-conductivity (OFHC) copper with gold plating, it provides low insertion loss and reliable signal transmission for radar, satellite, and 5G millimeter-wave systems.
Key Features
Low Insertion Loss
Engineered for minimal insertion loss and excellent Voltage Standing Wave Ratio (VSWR) across the full Ka-band.
Gold Plated Finish
Gold plating provides superior corrosion resistance and ensures long-term signal reliability in demanding environments.
OFHC Copper Body
Oxygen-free high conductivity copper waveguide body with precision-machined brass flanges for superior performance.
Custom Lengths
Available in standard lengths. Custom dimensions manufactured to your exact system requirements on request.
Common Use Cases
5G Infrastructure
High-frequency front-end systems
Radar Systems
Precision sensing and imaging
Communications
mmWave communication links
Satellite
Spaceborne and ground terminals
More Straight Waveguides
Frequently Asked Questions
What is a WR-28 waveguide?+
A WR-28 waveguide is a rectangular waveguide with internal dimensions of 0.280 x 0.140 inches, designed for guided electromagnetic wave transmission in the Ka-band frequency range of 26.5 GHz to 40 GHz. The WR-28 designation follows the EIA standard where 28 represents the broad wall dimension in hundredths of an inch.
What frequency range does the WR-28 waveguide cover?+
The WR-28 waveguide covers 26.5 GHz to 40 GHz, which falls within the Ka-band. This frequency range is used in 5G backhaul, satellite communications, military radar, and high-resolution imaging systems.
What materials are used in RF Essentials WR-28 waveguides?+
RF Essentials WR-28 waveguides are manufactured from oxygen-free high-conductivity (OFHC) copper for the waveguide body and precision-machined brass for the UG-599/U flanges. A gold plating finish is applied to all surfaces for corrosion resistance and optimal electrical conductivity.
