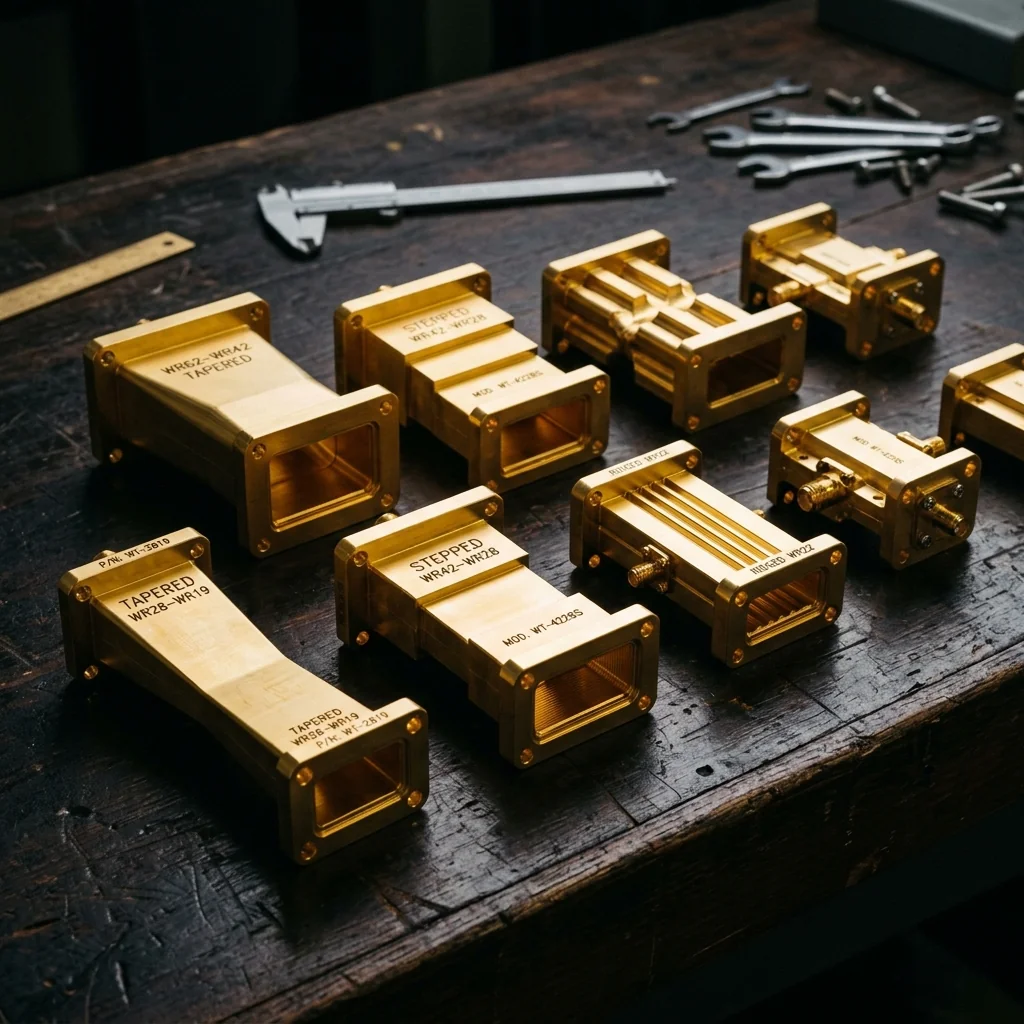

A waveguide transition connects two waveguide sections with different cross-sectional dimensions, different cross-sectional shapes, or different transmission line types entirely (waveguide to coaxial, waveguide to microstrip). The transition must transform the impedance and field distribution from one section to the other while maintaining low reflection (return loss better than 20 dB) and low insertion loss across the operating bandwidth. Three fundamental transition architectures handle the vast majority of waveguide interfacing problems: tapered, stepped, and ridged. Each makes a different trade-off between length, bandwidth, and manufacturing complexity.
Tapered Transitions
A tapered transition gradually changes the waveguide dimensions from the input cross-section to the output cross-section over a continuous taper. The gradual change ensures that at any point along the taper, the local reflection is small because the impedance changes incrementally. The total reflection is the vector sum of all the distributed reflections along the taper length.
The key design parameter is the taper length. A longer taper produces a smoother impedance transformation and lower reflection. The minimum taper length for a given return loss depends on the taper profile shape. Three common profiles are used:
- Linear taper: dimensions change linearly with position. Simplest to manufacture but produces the highest sidelobes in the reflection response. Requires the longest length for a given return loss.
- Exponential taper: the logarithm of the impedance changes linearly with position. Provides better return loss than linear for the same length, with a gradual roll-off at band edges.
- Klopfenstein taper: an optimized profile that achieves the minimum taper length for a specified maximum return loss across a specified bandwidth. This is the theoretical optimum, analogous to the Chebyshev transformer in discrete stepped designs.
| Transition Type | Bandwidth | Return Loss | Length | Manufacturing | Cost |
|---|---|---|---|---|---|
| Linear taper | Very wide (2:1+) | 15-25 dB | Long (3-5λ) | Simple CNC | $ |
| Klopfenstein taper | Very wide (2:1+) | 25-35 dB | Medium (2-3λ) | Contoured CNC | $$ |
| Single step | Narrow (10-15%) | 15-20 dB | Short (λ/4) | Simple CNC | $ |
| Multi-step (Chebyshev) | Wide (30-50%) | 20-30 dB | Medium (Nλ/4) | Stepped CNC | $$ |
| Ridged | Ultra-wide (3:1+) | 15-25 dB | Short-Medium | Complex 5-axis | $$$ |
Stepped Transitions
A stepped transition uses one or more discrete waveguide sections, each with a different cross-section, to transform the impedance in stages. Each section is a quarter wavelength long at the center frequency, creating an impedance transformer. A single quarter-wave section provides a bandwidth of approximately 15%. Multiple sections, with impedances chosen according to a Chebyshev or binomial distribution, extend the bandwidth proportionally to the number of sections.
A three-section Chebyshev stepped transition from WR-90 to WR-62 achieves better than 25 dB return loss across the entire Ku-band (12.4 to 18 GHz). The total length is approximately 3λ/4 at the center frequency, significantly shorter than a tapered transition achieving the same performance. RF Essentials manufactures multi-section stepped transitions in standard WR size combinations with typical return loss of 25 dB or better across the full operating band.
Design Trade-off: Stepped transitions are shorter than tapered transitions for the same bandwidth and return loss, but they produce ripple in the passband (Chebyshev) or sacrifice bandwidth (binomial). For applications where flatness across the band matters more than absolute return loss, a tapered design with a Klopfenstein profile is preferred despite the longer physical length.
Ridged Waveguide Transitions
A ridged waveguide has one or two metallic ridges protruding from the broad walls into the waveguide channel. These ridges lower the cutoff frequency of the dominant mode without significantly affecting higher-order mode cutoff frequencies. The result is an enormously expanded single-mode bandwidth, often 3:1 or wider compared to the 1.5:1 bandwidth of standard rectangular waveguide.
Ridged waveguide transitions are used when the system requires ultra-wideband operation that spans multiple standard WR bands. A single-ridge transition from WR-90 to ridged waveguide can cover 2 to 18 GHz (a 9:1 bandwidth) in a single component, replacing the need for multiple standard waveguide systems.
Manufacturing Challenges
- Ridge geometry tolerance: the ridge gap (the spacing between the ridge tip and the opposite wall) directly controls the cutoff frequency. A tolerance of ±0.05 mm on a 1 mm gap represents a 5% variation, which shifts the cutoff by a similar percentage.
- Surface finish on the ridge: current concentrates on the ridge edges, making surface roughness on the ridge faces a significant loss contributor. Gold plating of the ridge faces is standard for low-loss applications.
- 5-axis machining required: the ridge profile often varies along the transition length, requiring 5-axis CNC operations that are more expensive and slower than 3-axis work.
Selection Guidelines
- Same WR size, different flange: no transition needed; use a flange adapter.
- Adjacent WR sizes, moderate bandwidth: multi-section stepped transition. Best balance of size, performance, and cost.
- Non-adjacent WR sizes or wide bandwidth: Klopfenstein tapered transition.
- Ultra-wideband (spanning multiple WR bands): ridged waveguide transition.
- Waveguide to coaxial: probe-coupled or end-launch adapter, not covered by the three types above.
