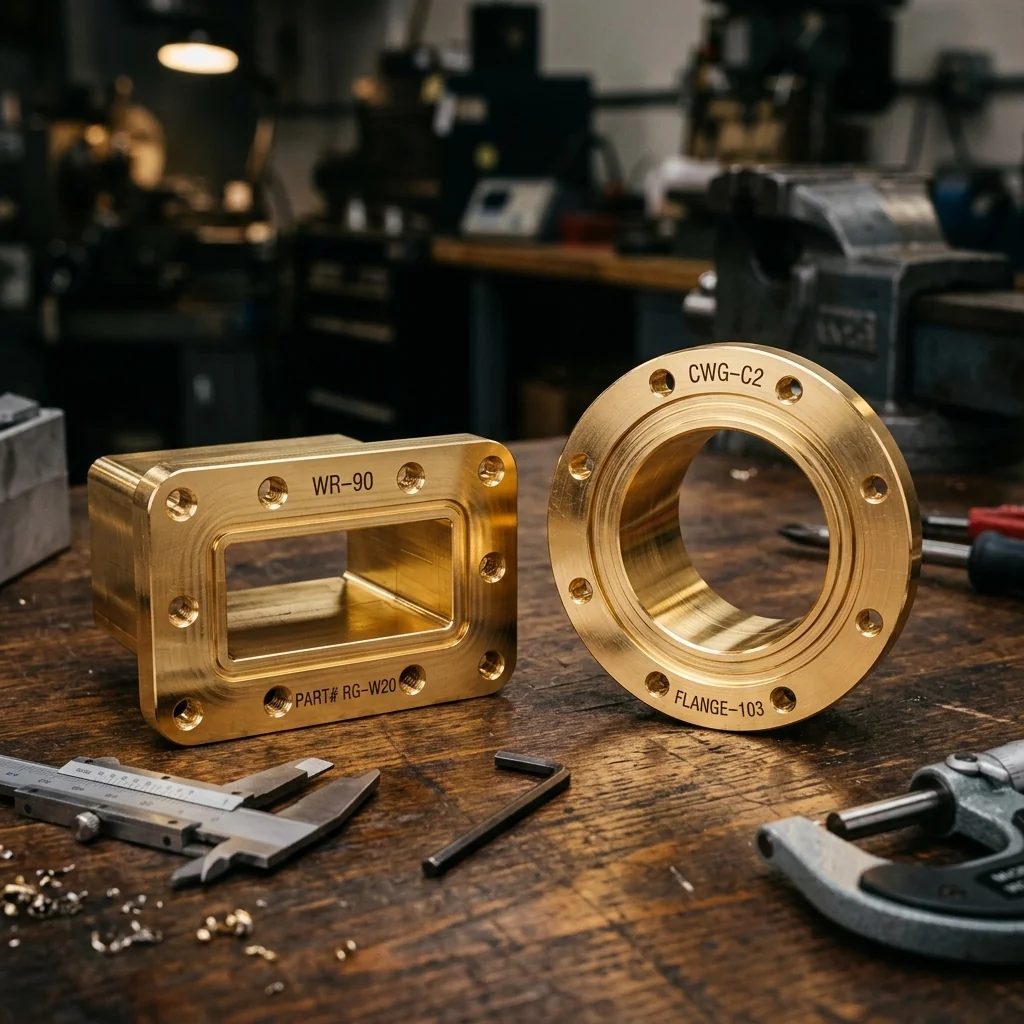

Rectangular waveguide dominates the RF industry. Over 95% of waveguide components sold worldwide use the standard WR rectangular cross-section, and for good reason: it offers a clean, well-defined single-mode operating range, simple manufacturing, and a mature ecosystem of flanges, adapters, and test equipment. But circular waveguide has properties that rectangular cannot match. When a system requires dual-polarization operation, the lowest possible transmission loss over long runs, or a waveguide that can rotate continuously, circular is the only option. The decision between rectangular and circular is not a matter of preference. It is dictated by the physics of the application.
Propagation Modes: The Core Difference
Rectangular Waveguide
Rectangular waveguide supports the TE₁₀ mode as its dominant mode. The cutoff frequency is determined solely by the broad wall dimension "a": f_c = c/(2a). The next higher-order mode (TE₂₀ or TE₀₁, depending on the aspect ratio) has a cutoff frequency approximately 2× that of the TE₁₀ mode for the standard 2:1 aspect ratio. This gives rectangular waveguide a single-mode bandwidth of roughly 40% (from 1.25f_c to 1.9f_c), which is the usable operating band defined by the WR designation.
The clear separation between the dominant mode and the first higher-order mode is what makes rectangular waveguide so practical. Within the single-mode band, any signal injected into the waveguide propagates as a pure TE₁₀ mode, maintaining predictable field distribution, impedance, and polarization throughout the entire transmission path.
Circular Waveguide
Circular waveguide supports the TE₁₁ mode as its dominant mode. The cutoff frequency is f_c = 1.841c/(2πa), where "a" is the inner radius. The problem is that the next higher-order mode (TM₀₁) has a cutoff frequency only 1.31× higher than the TE₁₁ mode. This gives circular waveguide a single-mode bandwidth of approximately 26%, which is significantly narrower than rectangular waveguide.
However, the TE₁₁ mode has a critical property that rectangular waveguide lacks: it exists as two orthogonal, degenerate modes. These two modes have identical cutoff frequencies and propagation constants but orthogonal electric field orientations. This means circular waveguide can carry two independent signals simultaneously on orthogonal polarizations within the same physical structure.
| Parameter | Rectangular (WR) | Circular (Dominant TE₁₁) | Circular (TE₀₁ low-loss) |
|---|---|---|---|
| Single-Mode BW | ~40% (1.25-1.9 f_c) | ~26% (1.0-1.31 f_c) | Overmoded (requires filters) |
| Polarization | Single (linear, vertical) | Dual (any two orthogonal) | Circular symmetric |
| Attenuation | Standard (benchmark) | ~0.8× rectangular | ~0.1× rectangular |
| Power Handling | High (limited by peak E-field) | Higher (~1.3× for same f_c) | Very high |
| Manufacturing | Simple (CNC milling) | Moderate (turning/boring) | Complex (mode filtering) |
| Flange Standards | Extensive (UG, CPR, CMR) | Limited | Custom |
| Component Availability | Excellent (commodity) | Limited (specialty) | Very limited |
When to Choose Rectangular
Rectangular waveguide is the default choice. Use it unless a specific application requirement forces you to circular. The advantages of rectangular include:
- Wider single-mode bandwidth simplifies system design. A WR-28 rectangular waveguide covers 26.5 to 40 GHz (40% bandwidth). A circular waveguide with equivalent cutoff frequency covers only 26.5 to 34.7 GHz.
- Standardized flanges enable interoperability. Every WR size has multiple standardized flange patterns (UG cover/choke, CPR, CMR) with defined bolt patterns and alignment features.
- Component ecosystem covers every function: bends, twists, transitions, couplers, filters, switches, terminations, and adapters. RF Essentials stocks rectangular waveguide components in every standard WR size from WR-650 through WR-03.
- Simple manufacturing by CNC milling from a solid block. No circular boring or turning required. This translates to lower cost and shorter lead times.
When to Choose Circular
Circular waveguide becomes necessary when the application requires one or more of the following capabilities:
Dual-Polarization Operation
Satellite communication feeds, radar systems with polarimetric capability, and radio astronomy receivers all require simultaneous operation on two orthogonal polarizations. The circular waveguide's degenerate TE₁₁ modes provide this naturally. An orthomode transducer (OMT) at each end separates the two polarizations into individual rectangular waveguide ports. The RF Essentials engineering team works with antenna manufacturers who need circular waveguide sections, OMTs, and rectangular-to-circular transitions for dual-pol feed assemblies.
Rotary Joints
Rotating radar antennas require a waveguide rotary joint that maintains low insertion loss and VSWR while the antenna spins continuously. Circular waveguide rotary joints exploit the axial symmetry of the TE₁₁ mode: the mode pattern does not change as one section rotates relative to the other. A rectangular-to-circular transition on each side of the joint converts from the system's rectangular waveguide to the circular section, which can rotate freely.
Long-Distance Low-Loss Transmission
The TE₀₁ mode in oversized (overmoded) circular waveguide has the remarkable property that its attenuation decreases with increasing frequency. This inverts the normal behavior where loss increases with frequency. AT&T Bell Labs explored this in the 1960s and 1970s for terrestrial long-haul telecommunications, achieving attenuation of 1 to 2 dB/km at 60 GHz in 60 mm diameter circular waveguide. Although fiber optics replaced this application, the principle is still used in high-power radar transmission lines and some radio telescope waveguide runs where every fraction of a dB matters.
The Polarization Purity Challenge: Circular waveguide's degenerate modes are both a feature and a risk. Any asymmetry in the waveguide, including ovality from manufacturing tolerances, burrs at flange joints, or asymmetric bends, couples energy between the two orthogonal TE₁₁ modes. This cross-polarization coupling degrades the isolation between the two polarization channels. Maintaining 30 dB of cross-pol isolation requires circularity tolerances of better than ±0.001" on the inner diameter, which demands precision boring or honing processes.
Transitions Between Types
Most systems that use circular waveguide still connect to rectangular waveguide at some point: for test equipment interfaces, for component integration, or for connecting to standard flanged hardware. The rectangular-to-circular transition is a critical component that must maintain low VSWR and insertion loss while converting the TE₁₀ rectangular mode to the TE₁₁ circular mode.
Common transition designs include gradual taper transitions (lowest loss, longest length), stepped transitions (moderate loss, shorter length), and quarter-wave impedance transformers. The choice depends on the available space, the required bandwidth, and the acceptable insertion loss. Every transition adds approximately 0.1 to 0.3 dB of insertion loss and raises the VSWR by 0.05 to 0.15, so minimizing the number of transitions in a system is always desirable.
Selection Checklist
- Single polarization, standard bandwidth? Rectangular. No discussion needed.
- Dual polarization required? Circular for the common section; rectangular for the individual polarization ports after the OMT.
- Continuous rotation? Circular for the rotary joint section; rectangular everywhere else.
- Minimum possible loss over long runs? Overmoded circular (TE₀₁), with mode filters to suppress unwanted modes.
- Maximum power handling? Circular has ~30% higher power capacity than rectangular for the same cutoff frequency, due to lower peak electric field for a given transmitted power.
- Cost-sensitive, high-volume? Rectangular. The manufacturing and component ecosystem advantages outweigh any marginal performance benefit of circular.
RF Essentials manufactures rectangular waveguide components in every standard WR size, plus custom circular waveguide sections and rectangular-to-circular transitions. All components are CNC machined in the USA with tolerances specified for your frequency band.
