Waveguide Pressurization: Nitrogen, Dry Air, and Dehydrator Systems

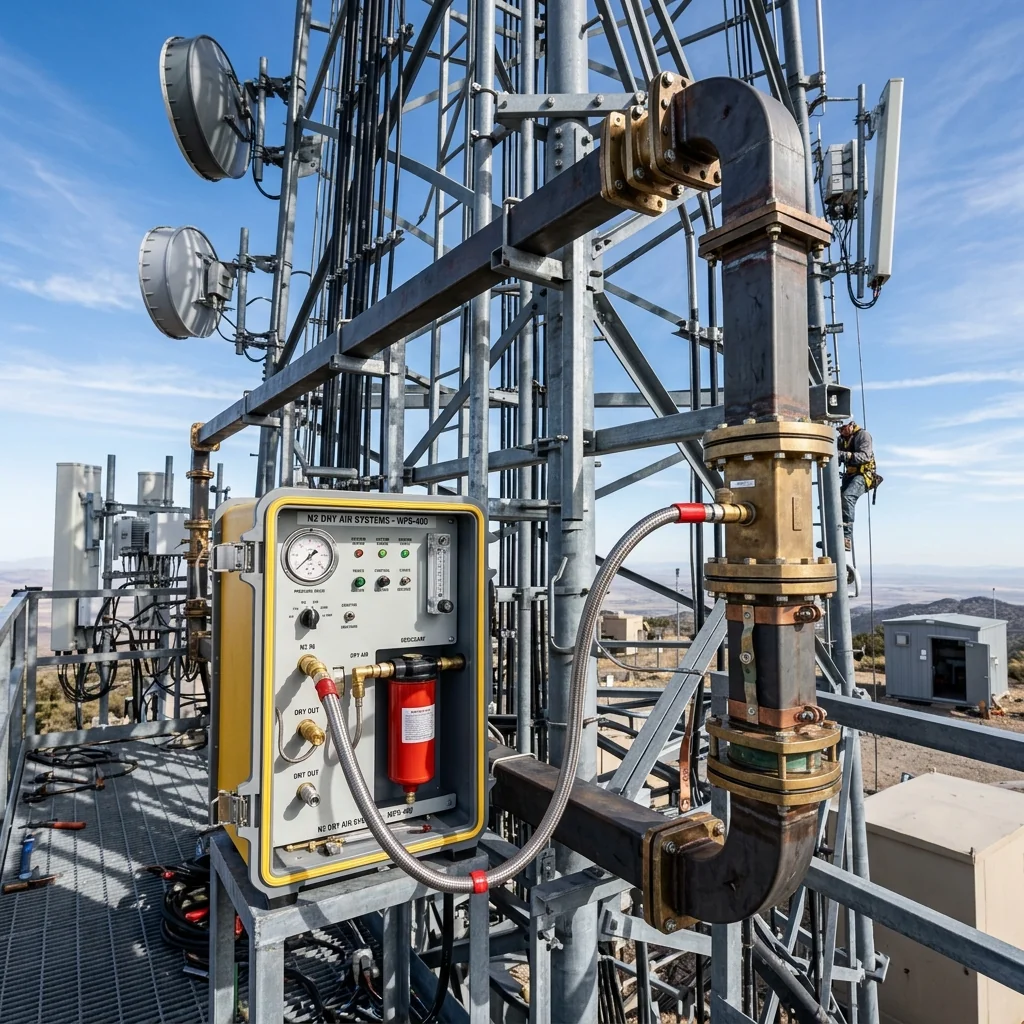

An unpressurized outdoor waveguide run is a ticking clock. Temperature cycling between day and night causes the air column inside the waveguide to expand and contract, pulling humid ambient air through flange gaskets and connector seals. Within weeks to months, depending on the climate, water vapor condenses on the internal waveguide surfaces. At C-band and Ku-band, that condensation increases insertion loss by 0.1 to 0.5 dB per meter. At Ka-band and above, liquid water droplets on the waveguide walls can increase loss by 2 to 5 dB and generate reflections that degrade the return loss to unacceptable levels. In freezing conditions, ice formation inside the waveguide can create complete RF blockage.

Pressurization prevents this failure mode by maintaining a positive pressure of dry gas inside the waveguide, ensuring that any leakage flows outward rather than allowing humid air to enter. This article covers the engineering behind waveguide pressurization systems: why they are necessary, how they work, and the specifications that determine system sizing and performance.

1. The Moisture Problem

Water is the enemy of waveguide performance for two reasons. First, liquid water has a dielectric constant of approximately 80 at microwave frequencies, compared to 1.0 for dry air. Even a thin film of water on the waveguide walls creates a significant impedance discontinuity that reflects energy and increases insertion loss. Second, water vapor absorbs RF energy at specific molecular resonance frequencies, with strong absorption lines at 22.235 GHz (water vapor) and 183.31 GHz. In a long waveguide run with saturated air, the water vapor absorption alone can add measurable loss at Ka-band.

The condensation process is driven by the dew point of the air inside the waveguide. When the waveguide temperature drops below the dew point of its internal atmosphere, water condenses. An outdoor waveguide straight section on a tower experiences surface temperatures that can swing 40°C or more between midday sun exposure and nighttime radiative cooling. Without pressurization, the internal humidity eventually reaches 100% relative humidity at the coldest point in the diurnal cycle, and condensation forms.

2. Pressurization Methods

Nitrogen Cylinder Systems

The simplest pressurization approach uses bottled nitrogen gas regulated to a low pressure (typically 0.5 to 3.0 PSI above atmospheric) and fed into the waveguide through a pressure port fitting. Nitrogen is preferred over compressed air because it is inherently dry (dew point below -60°C from the cylinder) and chemically inert. A regulator with a flow restrictor maintains the set pressure, and a pressure relief valve prevents over-pressurization that could damage flexible waveguide sections or blow out gaskets.

Nitrogen cylinder systems are simple, reliable, and require no electrical power. The principal disadvantage is that cylinders must be replaced periodically, typically every 2 to 6 months depending on the leak rate of the waveguide system. For remote sites or tower-mounted installations where site access is expensive, the recurring cylinder replacement cost and logistics can be significant.

Membrane Dehydrator Systems

Membrane dehydrators draw ambient air through a compressor, pass the compressed air through a polymer membrane that selectively removes water vapor, and deliver dry air (dew point of -40°C to -60°C) to the waveguide at the required pressure. The membrane separation process requires no consumable desiccant and operates continuously on AC power.

Membrane dehydrators are the standard choice for permanent installations because they eliminate the recurring cost and logistics of nitrogen cylinder replacement. A properly sized membrane dehydrator provides continuous dry air at the required flow rate to compensate for system leakage, with typical unit lifetimes of 10 to 15 years before membrane replacement.

Desiccant Dehydrators

Desiccant (heatless regenerating) dehydrators use twin towers of silica gel or alumina desiccant. Compressed air flows through one tower while the other regenerates by venting a portion of the dried output air back through the spent desiccant. These systems achieve very low dew points (-73°C or lower) but consume 15% to 25% of their compressed air output for regeneration, requiring a larger compressor than a membrane system for the same net dry air delivery.

3. System Specifications

Parameter	Nitrogen Cylinder	Membrane Dehydrator	Desiccant Dehydrator
Output Dew Point	-60°C (from cylinder)	-40°C to -60°C	-60°C to -73°C
Operating Pressure	0.5-3.0 PSI	0.5-5.0 PSI	0.5-5.0 PSI
Power Required	None	100-300 W (AC)	200-500 W (AC)
Flow Rate	0.1-0.5 SCFH	0.5-5.0 SCFH	1.0-10.0 SCFH
Maintenance Interval	2-6 months (cylinder swap)	Annual filter change	3-5 year desiccant refill
Best Application	Temporary, remote, no power	Permanent telecom sites	High-reliability, very low dew point

4. Sizing the Pressurization System

The dehydrator must supply enough dry air to compensate for the total leakage rate of the waveguide system. The total system leakage is the sum of all leak paths: flange joints, pressure windows, flexible sections, and any penetrations through the waveguide walls for pressure ports or monitoring sensors.

Undersizing the dehydrator is a common mistake. If the dehydrator output cannot keep pace with the leak rate, the internal pressure drops below atmospheric during cold nighttime conditions, and humid air is drawn into the waveguide through the same leak paths that normally allow dry air to escape. The result is the same as having no pressurization at all.

5. Pressure Monitoring and Alarm Systems

Every pressurized waveguide installation should include a pressure monitoring system that alerts operations staff when the internal pressure drops below the minimum threshold. A sudden pressure drop indicates a gasket failure, a loose flange bolt, or physical damage to the waveguide. A gradual pressure decline suggests increasing gasket aging or a slow leak developing at a connector or pressure window.

Modern pressure monitoring systems use digital pressure transducers at the dehydrator output and at one or more points along the waveguide run, with SNMP or serial telemetry back to the site monitoring system. Alarm thresholds are typically set at 80% and 50% of the nominal operating pressure, corresponding to caution and critical conditions.

6. Waveguide Components for Pressurized Systems

Pressurized waveguide systems require specific component features that are not standard on laboratory-grade waveguide:

• Pressure-rated flange gaskets: Fluorosilicone or EPDM O-ring gaskets in the flange groove that maintain an RF-tight and pressure-tight seal. Standard flat gaskets provide RF contact but may not seal adequately for pressurization.
• Pressure windows: Thin dielectric windows (PTFE or ceramic) that seal the waveguide while transmitting RF energy. Pressure windows are installed at the antenna feed interface and at the equipment end to isolate the pressurized outdoor run from the unpressurized indoor equipment.
• Pressure ports: Threaded fittings brazed or welded into the waveguide wall that accept the pressurization line from the dehydrator. Ports are typically located at the bottom of the waveguide run to allow gravity drainage of any residual condensate.

RF Essentials manufactures straight waveguide sections, E-plane bends, and H-plane bends compatible with pressurized system requirements. Our standard flange grooves accept O-ring gaskets for pressure sealing, and we offer custom configurations with integrated pressure port fittings for outdoor installations.
